Meet the Sveaverken F100
Farm Solutions
Auto Steer System
Based on Sveaverken Precision AgTech, F100 Auto Steer System is your best investment
F100 Auto Steer System for Tractor Boosts Your Yield
2.5cm High Accuracy｜Compatible with John Deere & Case IH Models
Based on Sveaverken Precision AgTech, F100 Auto Steer System is your best investment.
- 2.5cm High Accuracy Operation.
- Reduced Land Overlap and Skipping.
- Old Equipment? Not a Problem.
- Get Rid of the Fatigue of Traditional Farming.
- 410mm Large Steering Wheel with Huge Steering Power.
- Single GNSS Antenna Module Design for One-Man Installation.
- 2-years Hassle-free Warranty.
Superior Performance with Affordable Price
Sveaverken offers the affordable F100 Auto Steer System to optimize your farm's ROI (Return on Investment). Compared to systems costing more than 10,000 Euros, F100 is cost-effective and multi-functional.
Cost Reduction and Efficiency Improvement
F100 Auto steer System helps farmers to realize the vision of cost reduction and efficiency improvement. It reduces the amount of fuel, seed, fertilizer, and pesticides by optimizing the tractor's path through the field.

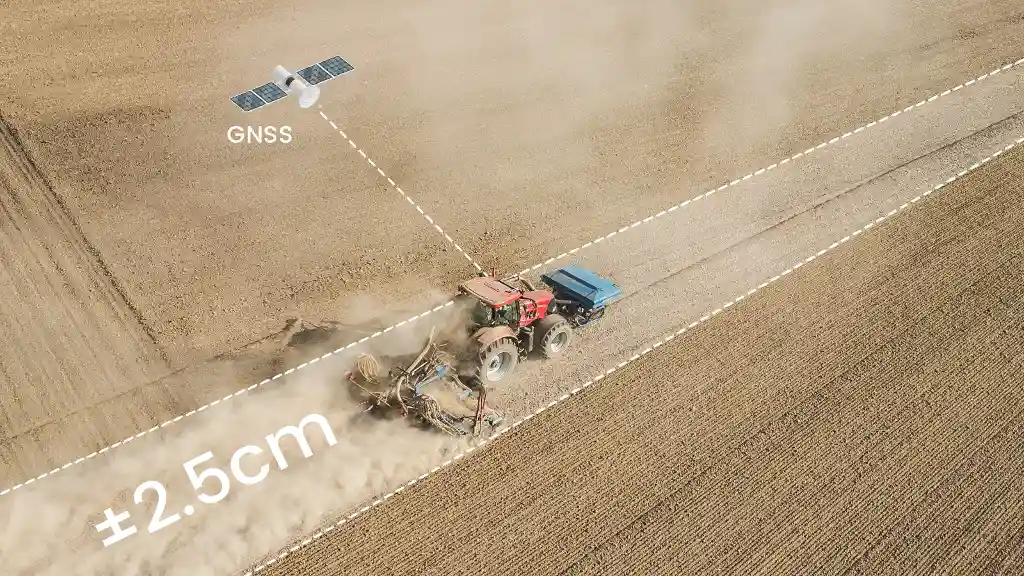

± 2.5cm High Precision
With an unachievable accuracy level by human operators, Sveaverken F100 Auto Steer System can reach 2.5cm high precision with GNSS RTK technology. Improving farming precision is our common goal, and the Sveaverken F100 escorts your farm operation.

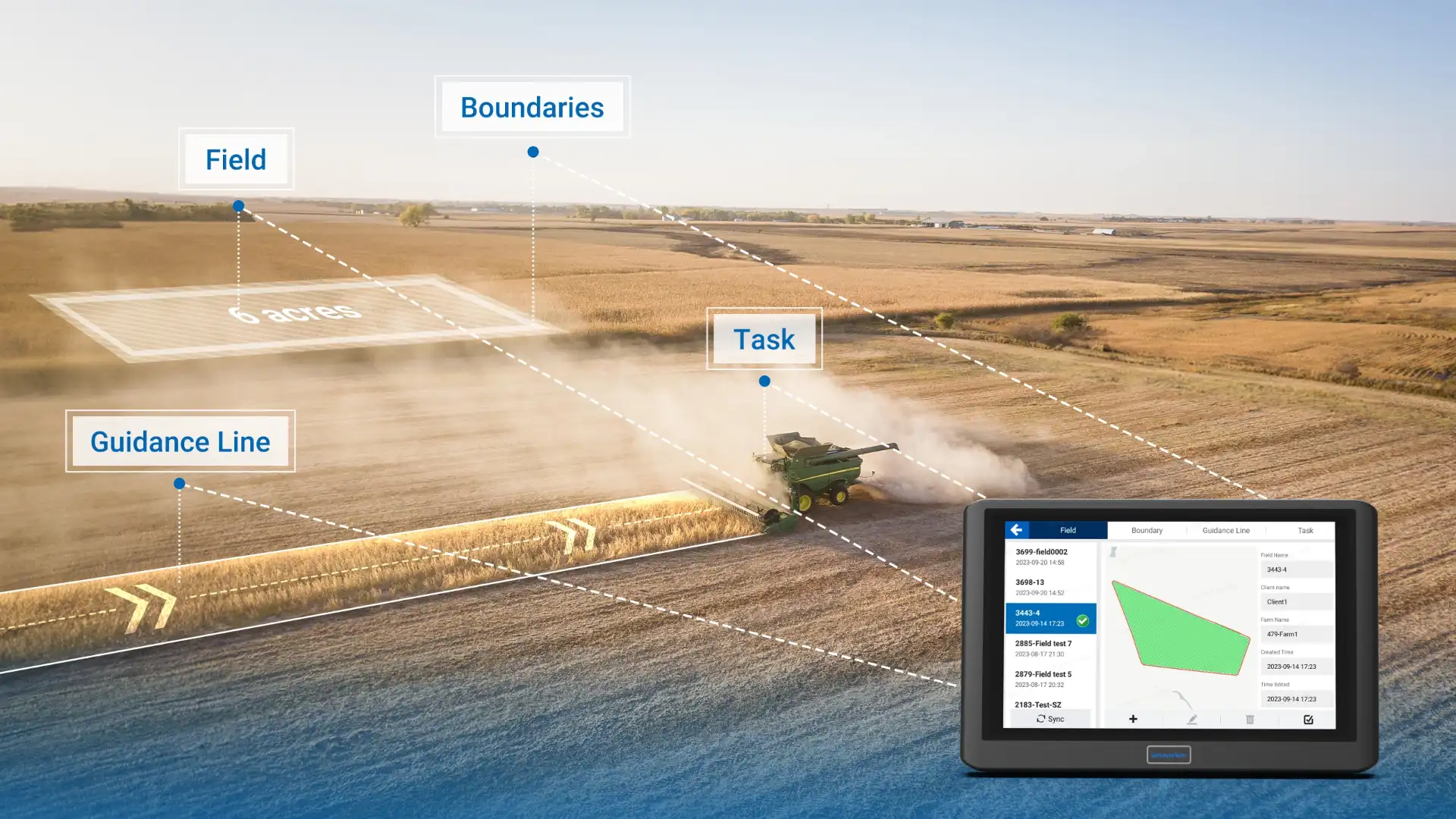

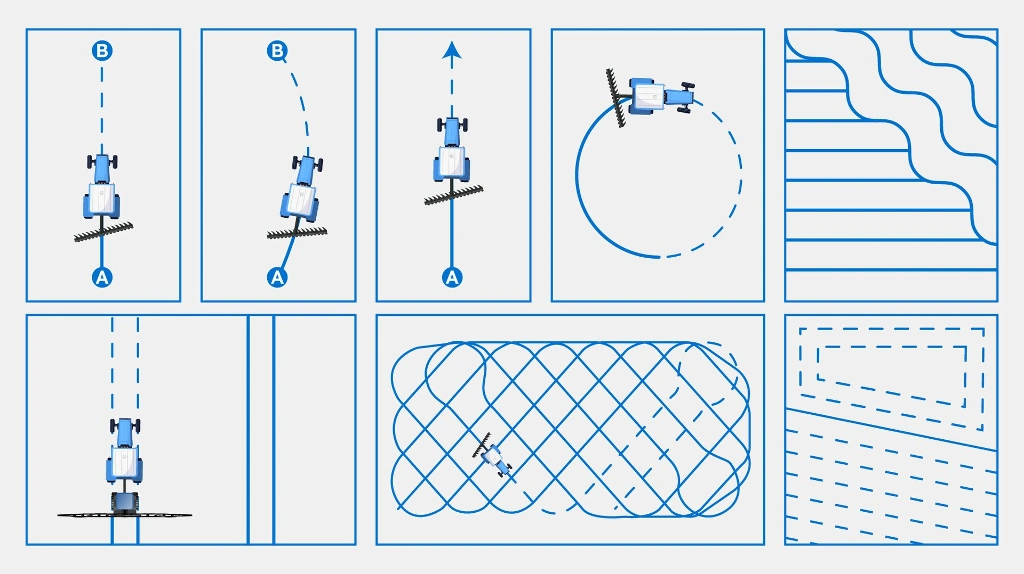

Guidance Line Mode
With F100, you can create straight and curved guidance line modes. In any given mode, the system will perform optimal path planning to eliminate skips and overlaps in your fields. Thus, it reduces wasted resources and increases field yields.

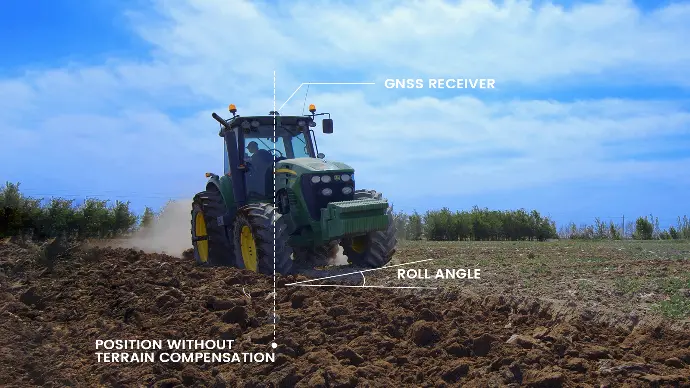

Terrain Compensation
If the auto-steer system does not have the terrain compensation feature, it will result in large offsets even on land with minimal slope. That may increase the overlapped area, material usage, and operating time. With F100 Terrain Compensation, there is no need to worry about the terrain in your field.
Wide Adaptability
F100 Auto steer System helps farmers to realize the vision of cost reduction and efficiency improvement. It reduces the amount of fuel, seed, fertilizer, and pesticides by optimizing the tractor's path through the field.
Easy to Install, Highly Integrated

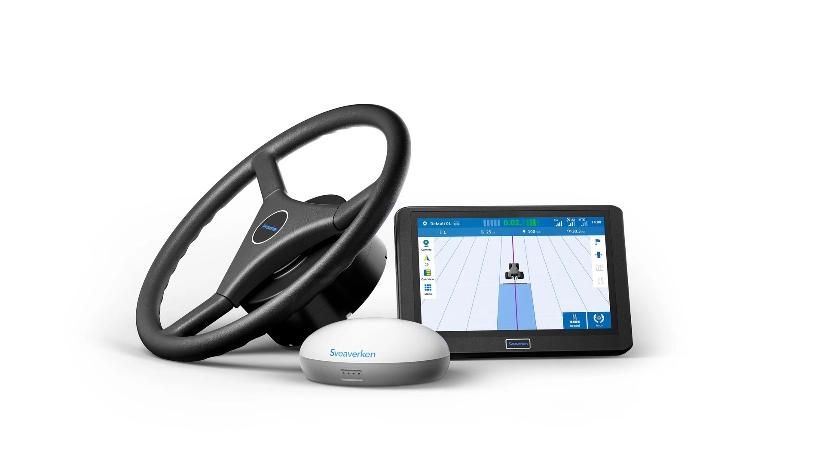

30 minutes to complete the modification of the tractor with Auto Steer System. As a highly integrated navigation system, F100 consists of four modules: GNSS Receiver, Electric Steering Wheel, Control Terminal, and Angle Sensor.

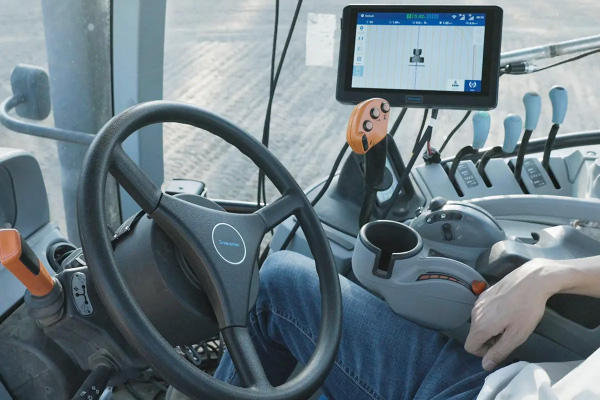

Reduce Fatigue Operations
Relax your mind and don't worry if your tractor is on the right path. Free your hands, because Electric Steering Wheel can achieve automatic steering. No need to control the direction with your hands all the time. Easy to care for the operation of tractor implements.
What's in the Box?
Technical Specifications
| Size | 410mm |
| Power Supply | 12/24V |
| Maximum Torque | 20 Nm(12V)/30 Nm(24V) |
| Waterproof & Dustproof | IP 65 |
| Size | 275×180×40 mm |
| Display | 10.1” inches >500nits LED screen; 1280*800 pixels |
| Power Supply | 9 V – 36 V |
| Operating Temperature | -20 ℃～70 ℃ |
| Storage Temperature | -40 ℃～85 ℃ |
| Waterproof and Dustproof | IP65 |
| Frequency | GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5b |
| Size | 162*78 mm |
| Operating Temperature | -20 ℃～+70 ℃ |
| Storage Temperature | -40 ℃～+85 ℃ |
| Waterproof & Dustproof | IP 66 |
