Portable Axle Weighing System

A system that reports weight and overloads of any vehicles which is pecifically designed to setup weighing stations anywhere.

Reports weight and overloads of any vehicles

Portable axle weighing system that reports weight and overloads of any vehicle. Specifically designed to set up weighing stations anywhere.

DINA 3 Portable can be applied at job sites, agriculture, forestry, and waste disposal plants to name but a few.

Key Features

  • Lightweight, easy to carry (27 kg each platform)
  • Ramps made from aluminum
  • Static and dynamic weight mode
  • The system weighs up to 12 axles
  • Pre-set customer code
  • Automatic and manual print of each every operation thanks to built-in printer
  • Weather protection case
  • User interface available in any language
  • Overload control with warning messages
  • Direct communication to PC (optional cable required)
  • USB port included
  • Connectable to battery and car lighter (optional cable required)

How does it benefit you?

  • Cost-effective solution for authorities
  • Easy to install and use virtually anywhere
  • Easy mounting and dismantling
  • Maximize revenue and shipping costs
  • Avoid overloading. Take the guess-work out of vehicle loading
  • Versatile and flexible. From cars to truck and tractors

The power of Dina 3

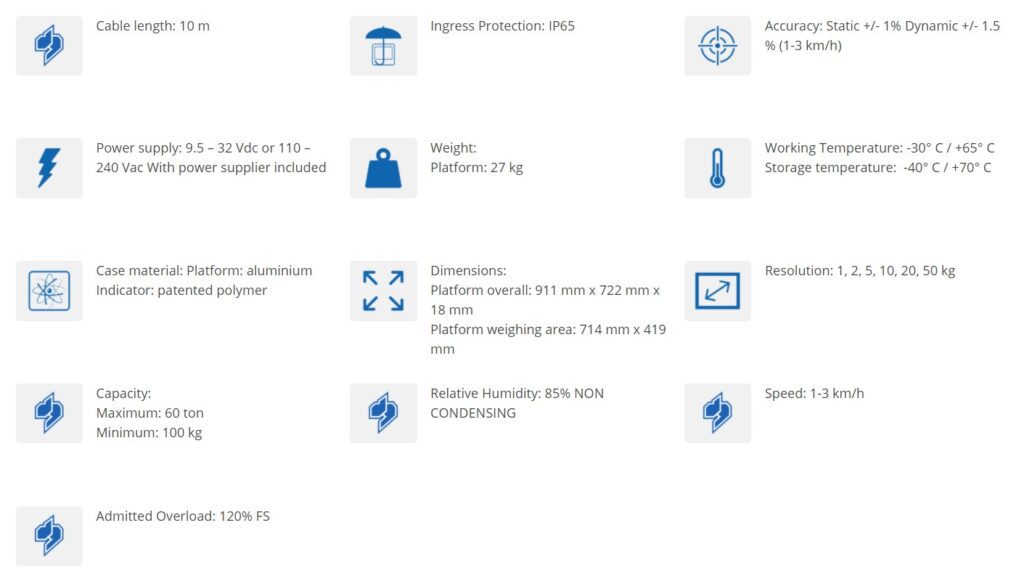

Technical Details

System Configuration

  • 2 weighing platforms with ramps
  • 1 portable indicator, including printer and USB connection
  • 2 connection cables (10 m)
  • 1 power supply cable (3.5 m)
  • 1 power supplier 110 – 240 Vac / 12 Vdc
  • 1 internal sound alarm


  • 979-0236 Extraleveller Portable Kit (4 pcs of 200 cm each 2 before and 2 after the platforms) Kit weight: 52 Kg.
  • 979-0100 DINA3 Office SW
  • 979-0099 USB memory key
  • 989-0133 cable RS232 L=15mt Amp 8 vie + DB9 + Adapt USB
  • 989-0148 Power cable Elect Lighter SPM 2Pins
